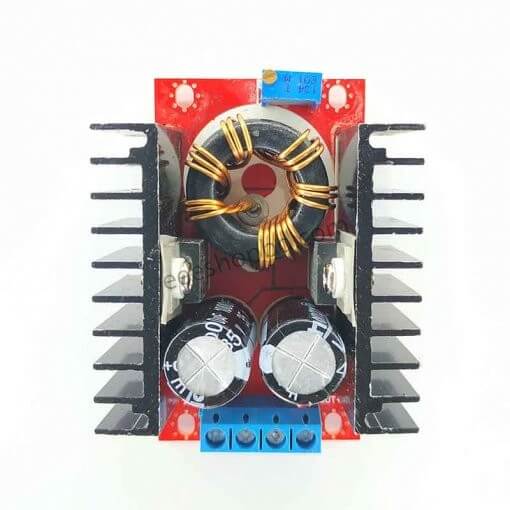

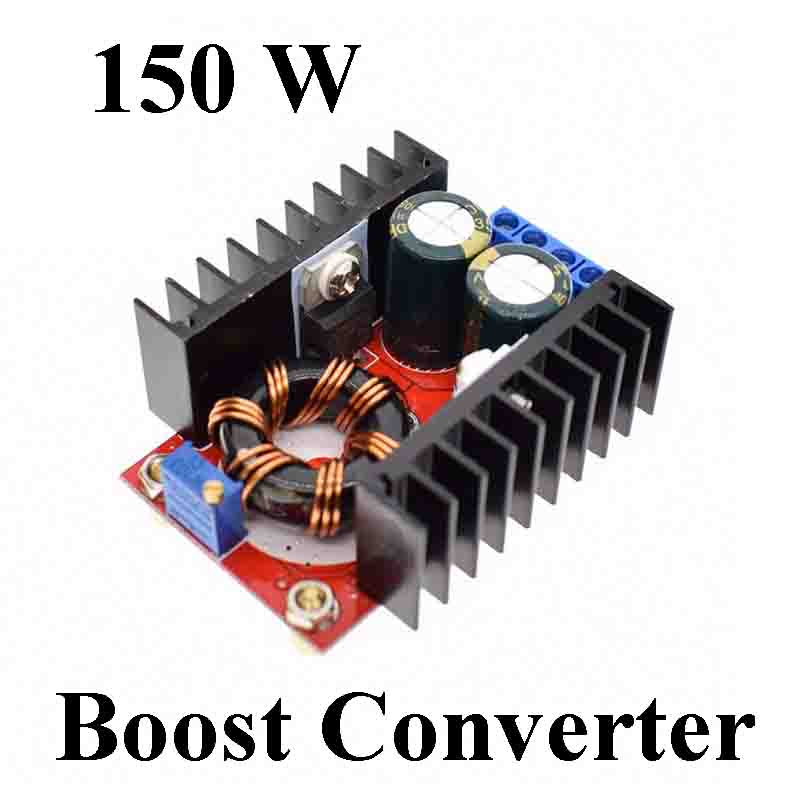

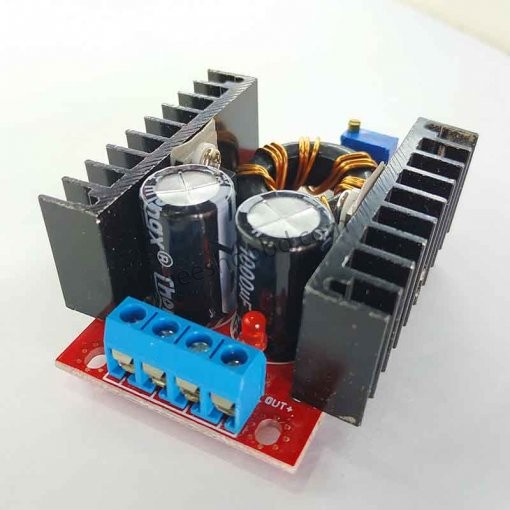

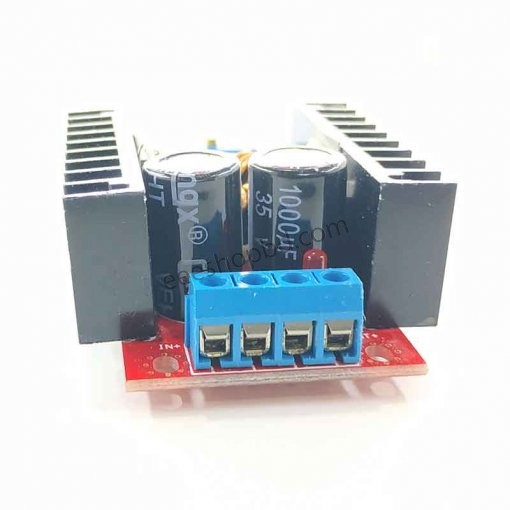

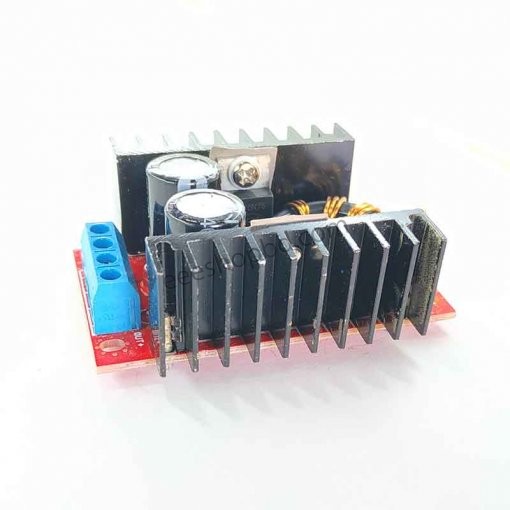

150W DC-DC Boost Converter 10-30V to 12-35V Max 10A Step Up Voltage

Description
This 150W DC-DC Boost Converter 10-30V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V.  The output voltage will be higher than the input voltage.
This module also additionally has Constant Current (CC) and Constant Current and Under Voltage Protectiob (UVP) circuits..
The boost converter design is based on popular Texas Instrument’s UC3844 current mode PWM controller chip.
Applications
Car , laptop power supply : Run Laptop on DC12V Car battery . (Laptops usually require 17V – 18V DC.)
Run Communication equipment on single 12V lead acid battery that is rated for operation at 24V to 35V
Run Higher voltage (24V – 35V) DC motors used in Robots using single 12V batteries
Boost charger : Because of CC and CV adjustments module can be used as battery charger
Solar battery charger
for your electronic equipment
Pre-supply system
Technical Specifications
Input Voltage: 10v – 30v DC
Output Voltage: 12v – 35v DC
Output Current: 10A MAX
Input Current: 16A (MAX)
Output Ripple: 2% MAX
Output Power : natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency : 94% (Input @24V ,Output @35V/2A)
Output ripple : 350mV (input @12V , Output @24V/3A )
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or – enhance cooling)
No-load current : 20mA typical
Dynamic response speed : 300uS 5%
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
The temperature of the step up Module should not exceed 80C
Size : 65*47*23.5 mm
[!] Warnings
Does NOT limit current, do not overload!
The maximum rated values should NEVER be continuous from the load or else the module will be damaged.
Be sure to install correct circuit protection, such as fuses, to the input of the module to avoid overloading and the potential for fire.
Please enhance heat dissipation above 50W
Failure to take these precautions and incorrect use of this module may result in damage, fire, and/or personal injury.
Output setpoint voltage must always be greater than applied input voltage.
Documents and Downloads
UC3844 Current mode PWM controller Datasheet
UC3844 Based Boost Converter Schematics
Package Includes
1x OSKJ 150W CC-CV-UVP DC-DC Boost Converter 10-30V to 12-35V – Max 10A Output
