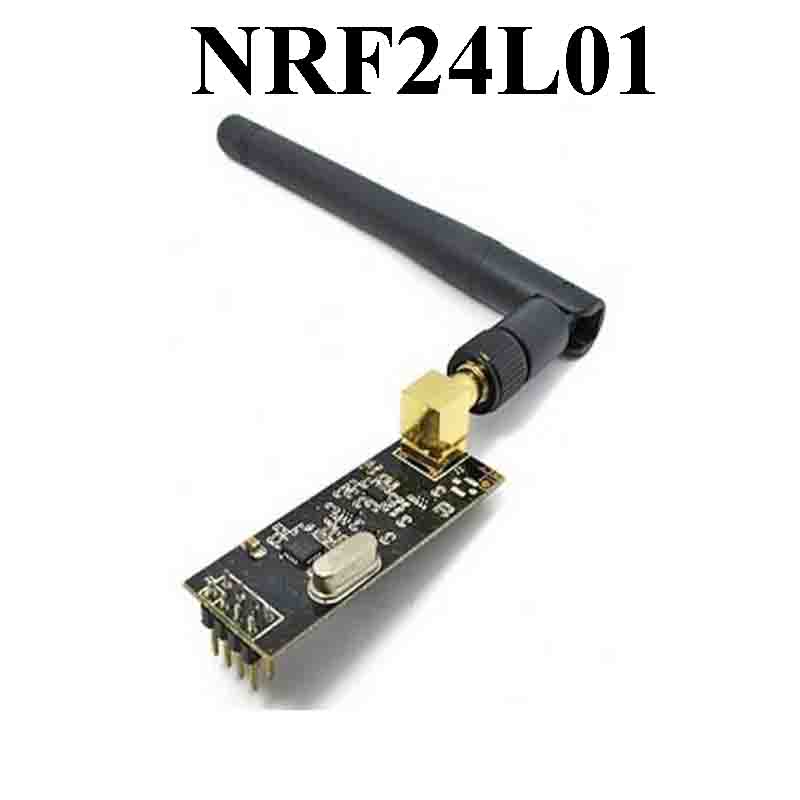

2.4GHz NRF24L01+PA+LNA Wireless Module With Antenna

2.4GHz 1100 Meters Long Distance NRF24L01+PA+LNA Wireless Module with Antenna
The 2.4G NRF24L01 Wireless Module w/PA and LNA use the 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature – very nice.
Features:
Voltage: 3-3.6V.
Max output power: +20 dBm.
Working current in transmit mode: 115mA.
Working current in receiver mode: 45mA.
Current in mode: 4.2uA.
Operating temperature: -20-70 degree.
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode.
PA growth: 20dB.
LAN growth: 10dB.
LAN noise figure: 2.6dB.
Antenna growth: 2dBI.
2M rate: 520m.
Weight approx 12.82g
Package Includes:
1 x NRF24L01+PA+LNA Wireless Module.
1 x Antenna.
Applications:
It is used in robotics.
Multiple DIY projects
