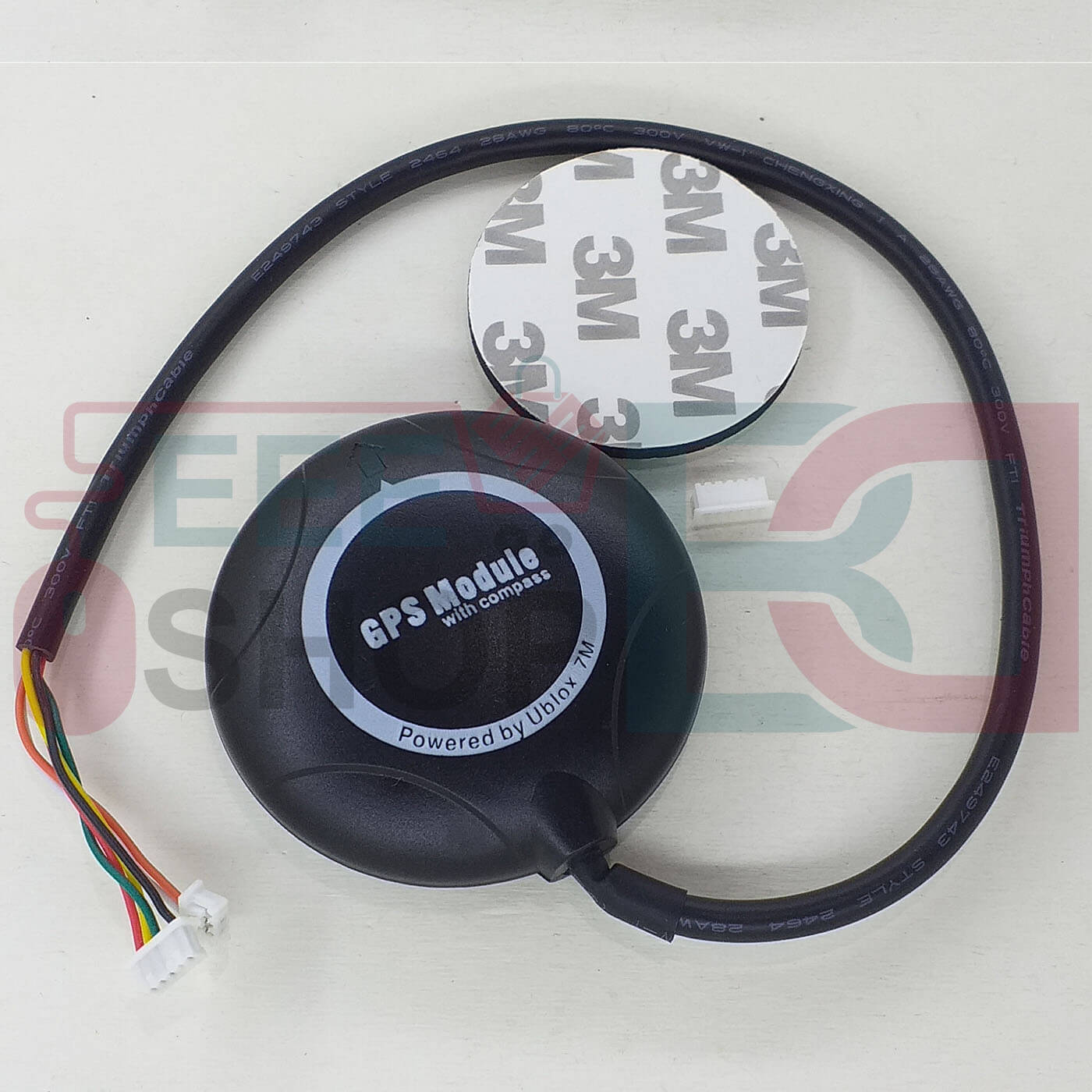

GPS Module with Compass M7N

Model
Ublox NEO-M8N
Receiver Type
72-channel Ublox M8 engine.
Main Chip
Ublox NEO-M7N
Sensitivity
Cold Start (without aiding): -147 dBm
Hot Start: -156 dBm
Position Accuracy
Autonomous: 2.5 m
SBAS: 2.0 m
Acceleration
<4g
Navigation Update Rate
up to 18 HZ.
Operating Temperature Range
-45ºc to 105°c
Tracking Sensitivity
-161 dBm
Co-Ordinate System
WGS-84
Capture Time
0.1s Average
Cold Start Time
30s
Warm Start Time
1s
Boot Time
1s Average
Maximum Altitude
18000
Weight (gm)
33
Cable Length
20 cm
Supply Voltage (V)
0.5~3.6 V
Dimensions (mm) LxWxH
54 x 22 (Dia x W)
Shipment Weight
0.135 kg
Shipment Dimensions
8 x 8 x 6 cm
